  • Model Number: NK300CX

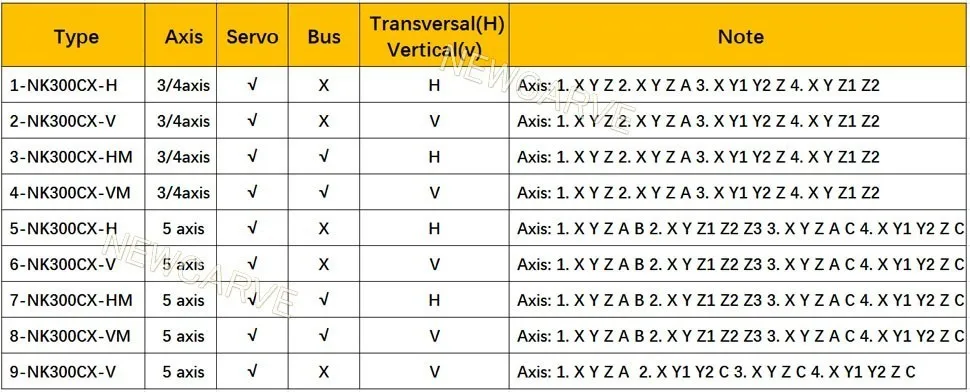

  • Model Number: NK300CX-H/HM/V/VM
  • Application: CNC Router

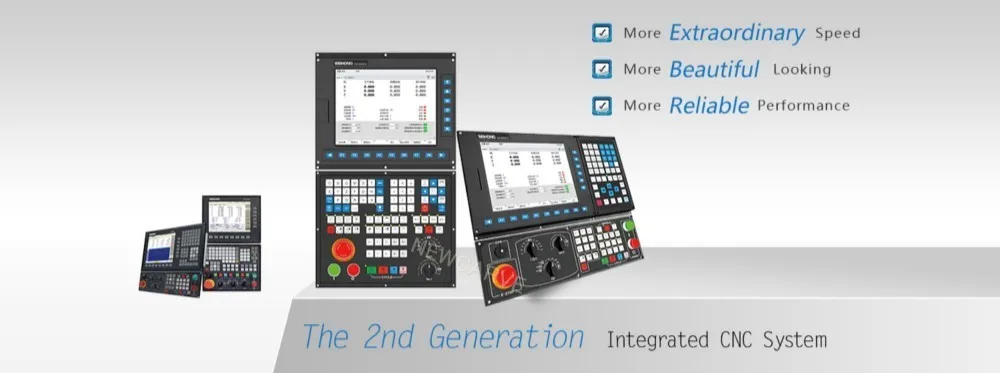

    • The post WEIHONG Nc Studio V10 Controller CNC Router 3-axis 4-axis 5-axis Linkage Integrated Control Card NK300CX-H/HM/V/VM NEWCARVE first appeared on CNC Controller.

    ]]>



    Mounting Dimension of WEIHONG Nc Studio V10 Controller

    Host computer dimension figure and borehole drawing：

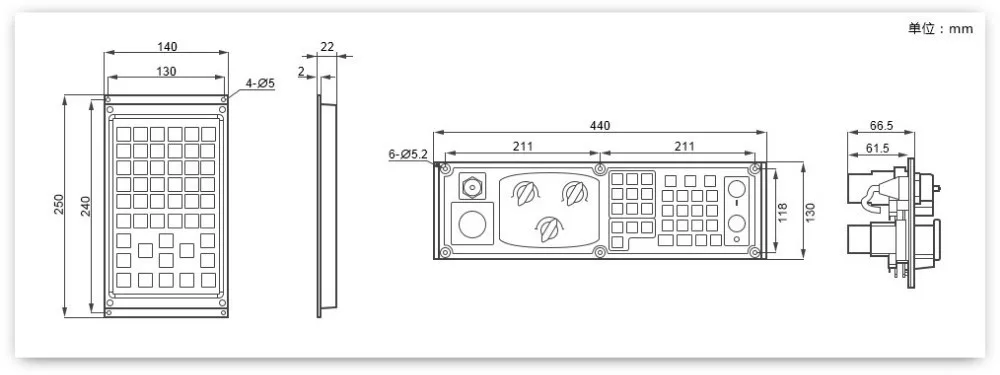

    Keyboard dimension figure and borehole drawing：



    Specification parameters of WEIHONG Nc Studio V10 Controller

    CNC Specifications

    • Number of Axes Supported
      3-5 axes

    Hardware Specifications

    • CPU
      Dual cores
    • CPU Clock Speed
      1.6GHz
    • RAM
      1GB
    • Storage
      60GB
    • Monitor Dimension
      10.4
    • I/O
      800×600（SVGA）
    • I/O
      Standard: 28/8; Extended terminal board: 8/8(non-cascade connection),10/10 (cascade connection)
    • Performance Indicator
      The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth-grade protection standards of GB/T 17626.5-2008.
      Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
      The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

    Spindle

    • Analog Voltage Output
      0-10V

    Tool Management

    • Tool Magazine
      Linear tool magazine, Disk-type tool magazine
    • Tool Measurement Mode
      Auto measurement, Manual measurement
    • Tool Measurement Type
      Fixed calibration, Mobile calibration, First calibration & Calibration after the tool change

    Interpolation Programming

    • Circular Interpolation
      Three axes linkage
      Three axes linkage
    • Compensation

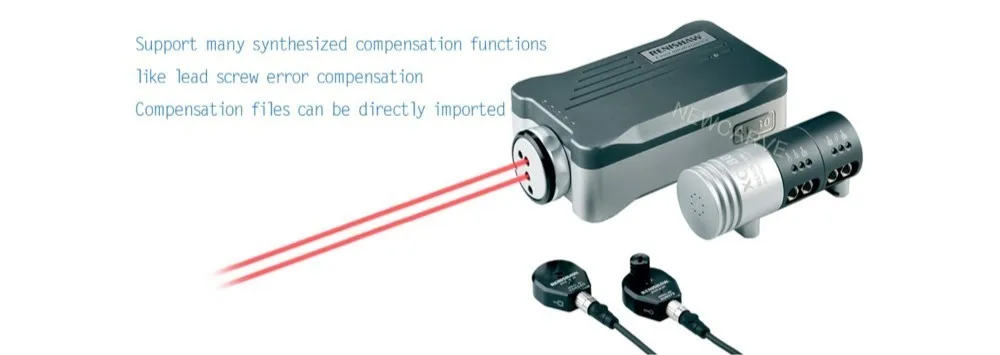

      Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

    Toolpath Program

    • Supported File Format
      *.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt

    Communication

    • Internet(Ethernet)
      LAN communication, Front USB interface, Two-way transmission between the system and PC

    Operations

    • WCS Setting
      Supporting WCS G54-G59 and 120 extended WCSs
    • Processing Technology
      Array function, Mirror&rotate, Multi-layer machining, Cycle machining

    Software Language

    • Chinese, English

    High-speed High-precision Optimization

    • Interpolation Algorithms
      S-type, LEP, and Acceleration T-type algorithms

    Reliability & Safety

    • CNC Software Alarm
      Alarms of a program error, operation error, over-travel error, PLC error, and IO communication error

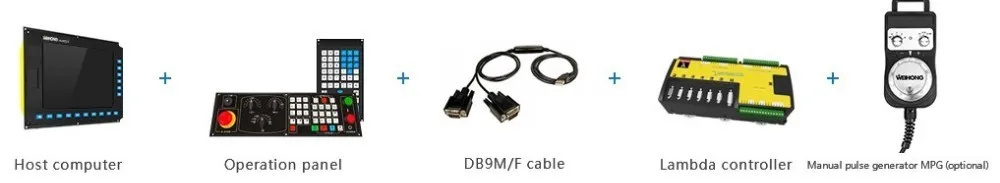

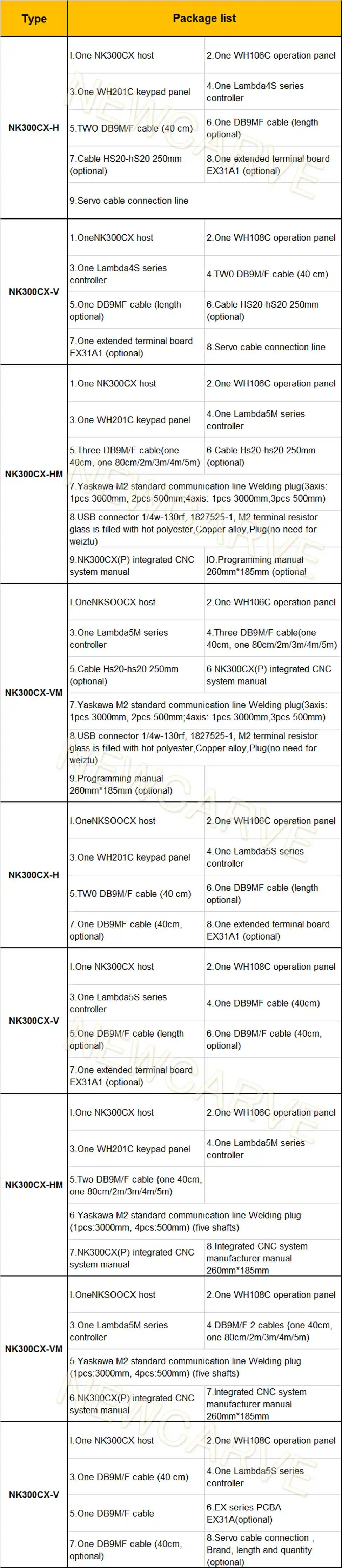

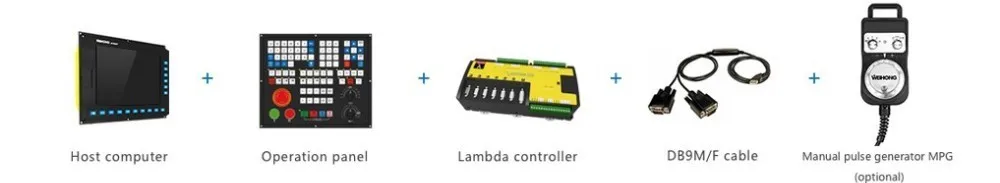

    Packing List of WEIHONG Nc Studio V10 Controller

    Widely applied……
