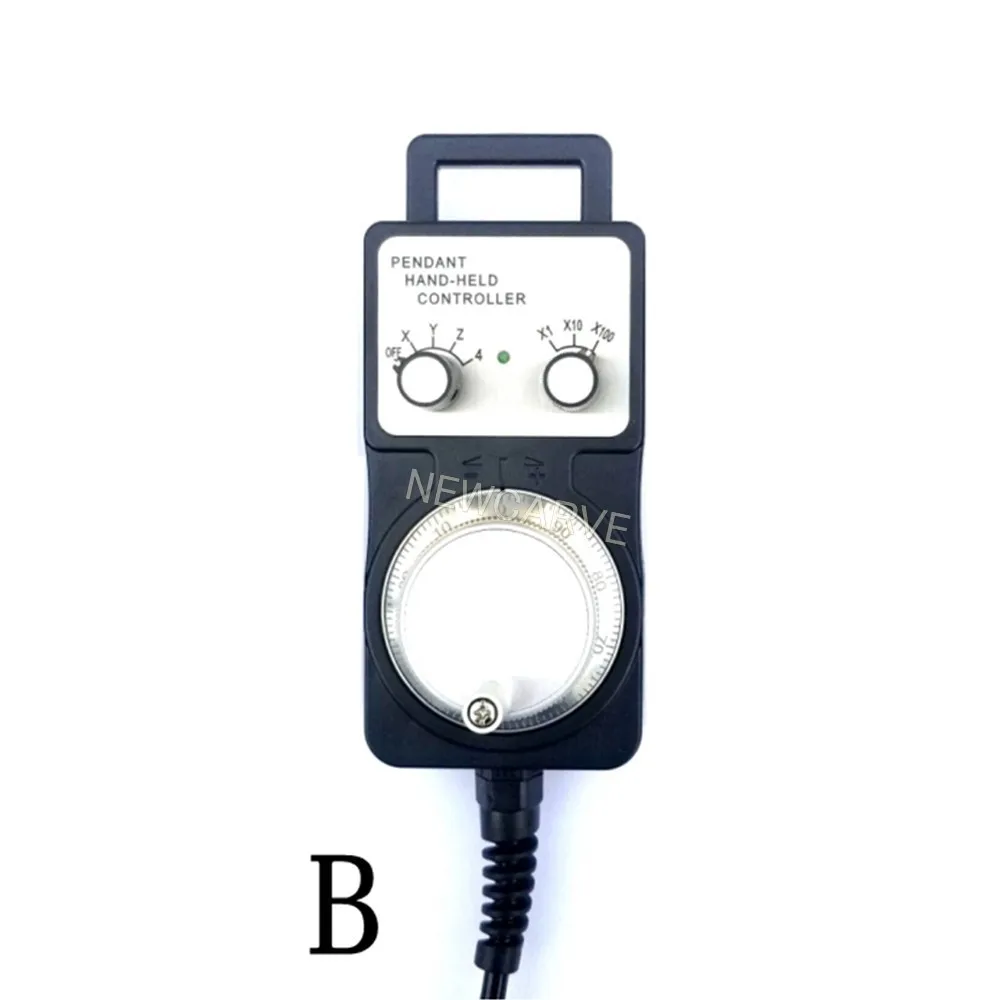

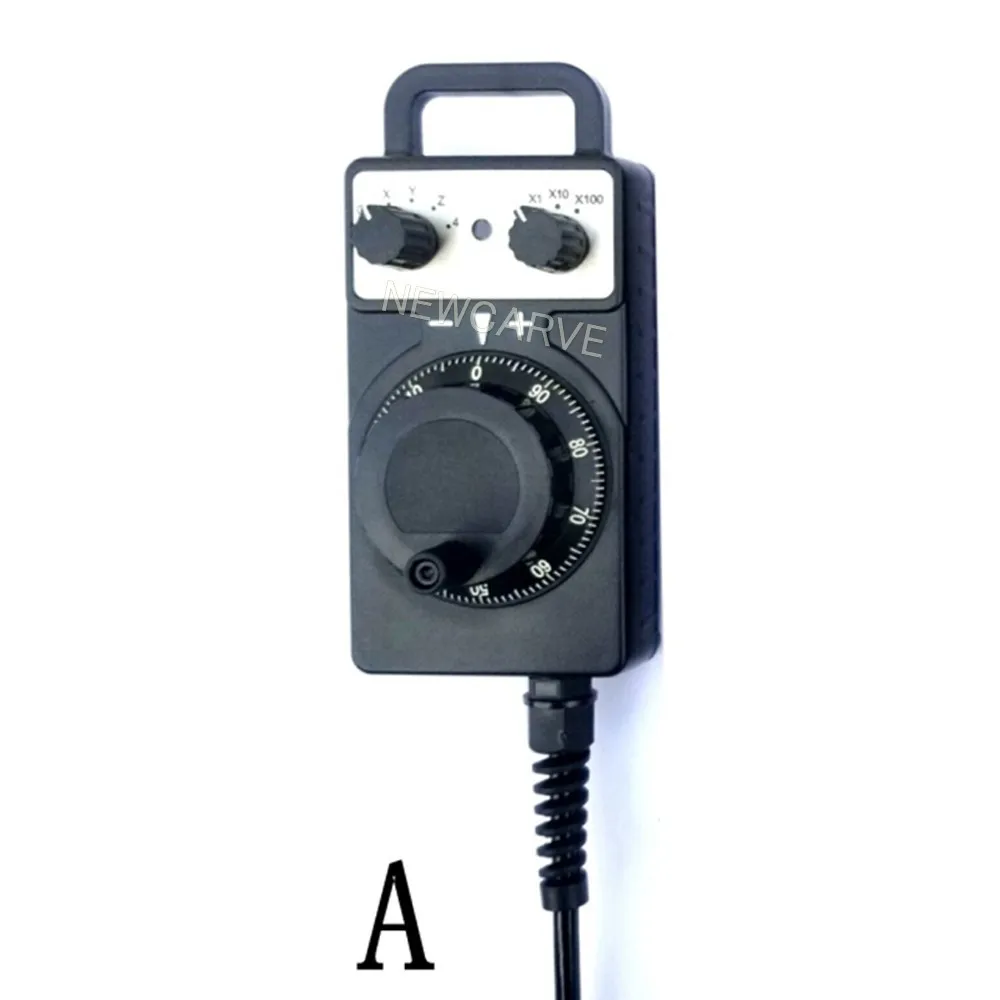

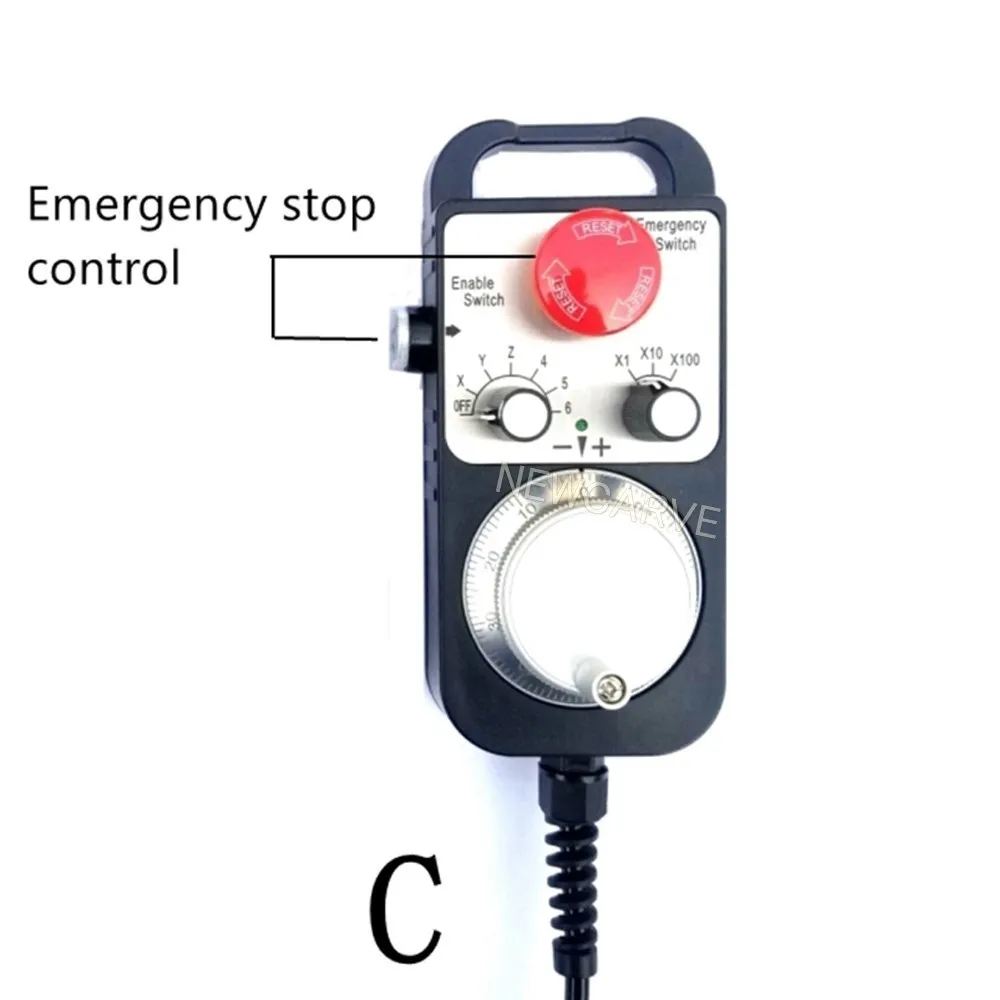

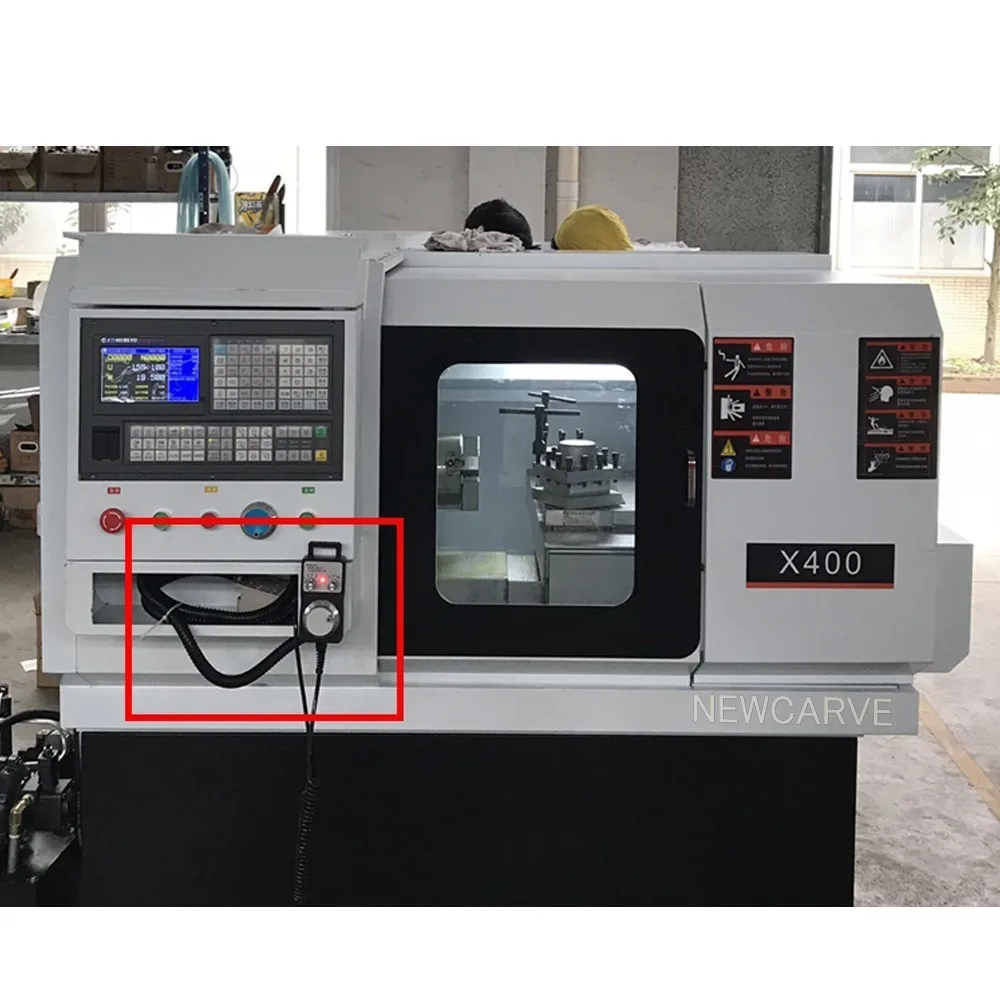

Pendant Handwheel has 3 kinds:
1.Voltage 5V 100PPR.General model, adapt to 98% of the market’s 5V handwheel power supply system
2.Voltage 12V 25PPR.Suitable for Mitsubishi
3.Voltage 24V 100PPR.Suitable for PLC with 24V supply voltage
Pendant Handwheel Features :
1. Cable: (easy to open about 3 meters): imported materials, moderate hardness, can withstand more
than 300,000 times of stretching
2.Housing: New ABS material Corrosion resistant Not easy to break
3.Band switch: FD switch from Taiwan Fuhua Company
Pendant Handwheel Specification :
Unconnected wires must be cut to bare copper，then one after another parcel, Do not touch anything else lines,
components, and housing to avoid causing a short circuit.
1. Please read the manual carefully before wiring, so as not to affect the handwheel operation.
2. The encoder is unable to reverse, the voltage is too high to be burned, usually 5V, such as the new generation
of Siemens, but Mitsubishi connect 12V, PLC connect 24V.
3. The COM point is the handwheel switch public point, must be connected, otherwise, the switch will not
work properly.
4. The handwheel is light to handle, the collision is easy to be damaged, the rotating code disk and the switch
cannot be too hard, so as not to affect the service life
5. If you don’t have A -, B – signal, you don’t have to connect
6. If Mitsubishi does not have A -, B – signal, PLC does not have A -, B – signal, these signals are not connected.
