Functional features of TF-6225 Fiber+CO2 Laser Control Card
Cutting:
— Optimal algorithm
— Perfect cutting with high efficiency
— Various brands or power of fiber laser, CO2 laser tube
— Various cutting power: PWM(5V/24V)
— Metal/non-metallic materials cutting
Capacitive height-sensing:
— Auto height-sensing with 0.1mm accuracy
— Perforation step by step
— Flying cut
— One-click calibration
Technical parameters of TF-6225 Fiber+CO2 Laser Control Card
| Model | TF-6225 |
| Power Supply | DC24V 3A |
| General Input | 12 Roads |
| General Output | 20 Roads |
| Axis | X Y Z U |
| Laser Beam | 2 Heads/Power Controlling Stand-Alone |
| Laser Sources | Fiber laser/CO2 laser |
| Data Transmission | Flash drive, network or USB communication |
| Highlights | — Auto capacitive height-sensing — Flying cut — Perforation |

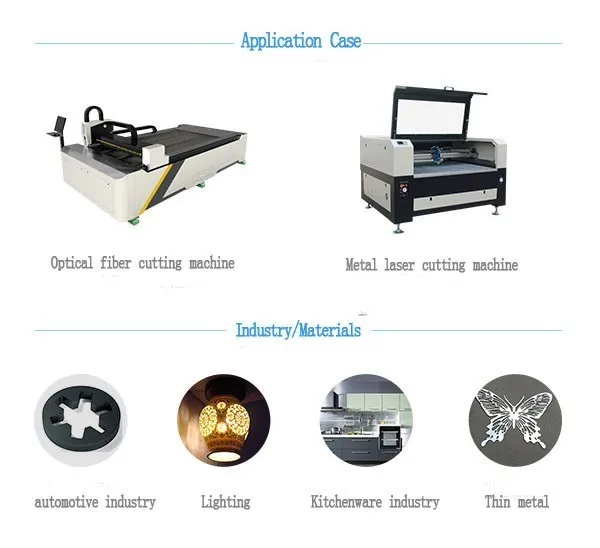

The application field of TF-6225 Fiber+CO2 Laser Control Card
Fiber laser cutting, metal/nonmetallic materials cutting, and multi-metal materials in various thickness.
Application: Metal cutting, auto parts, gifts, advertising, and kitchenware.
