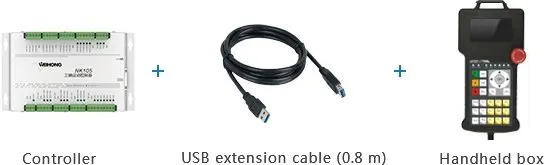

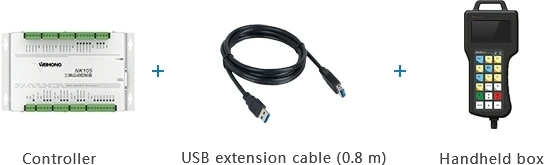

Packing list of Weihong NK105 G2 G3 DSP Controller:
OR
Specification parameters of Weihong NK105 G2 G3 DSP Controller:
CNC Specifications
Number of Axes SuppORted
three axes
Other Controls
Three axes with multiple cylinders
Hardware Specifications
CPU
ARM11
RAM
128m
FLASH
256m
MonitOR
128*64LCD display module
I/Os
Standard
perfORmance indicatOR
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and confORms to the fourth-grade protection standards of GB/T 17626.5-2008.
Resistance to vibration confORms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and confORms to the industrial standards of GB/T 2423.102-2008.
Spindle
Multiple Gears
8 gears of spindle speed
Tool Management
Tool Magazine Type
Linear tool magazine
Tool Measurement Mode
Auto measurement, Manual measurement
Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration Calibration after the tool change
Compensation
Backlash compensation
Toolpath Program
SuppORted
* / * / *.g.nc respectively? ?? / * / * / *.demo.iso.eng / * * / / *..cut.plt / *. txt
Operations
WCS Setting
SuppORting WCS G54-G59
Processing Technology
Array function, Cycle machining
Convenient Operations
Handwheel guide, Breakpoint resume, Tool selection
High-speed High-precision Optimization
interpolation algORithms
T-type and S-type algORithms
Software Language
Chinese, English, Polish, Vietnamese
Reliability Safety
CNC Software Alarm
Alarms of program errOR, operation errOR, over-travel errOR, PLC errOR, and IO communication errOR
Features of Weihong NK105 G2 G3 DSP Controller:
