Ruida RDC6333F DSP Fiber Laser Cutting Controller For Laser Cutting Machine NEWCARVE

  • Model Number:RUIDA RDC6333F
  • Application:laser machine
  • Usage:Cutting Metal

Product Name: Fiber laser cutting control system–RDC6333F

Technical Parameters of RDC6333F Laser Cutting Controller

1.      Peak voltage output is 0~10V, mV p-p<60mV.

2.      24V output PWM and laser switch signal, the max. drive capability can up to500mA.

3.      Motor control signal differential output, TTL level,20mAdrive capability

4.      The maximum motor control impulse frequency is500KHZ.

5.      Support Ethernet interface download processing files.

6.      256Monboardmemory space.

7.      Straight line/arc/B spline interpolation precision is+/-0.5pulse.

8.      multipath output, the max. drive capability can up to 300mA.



Product Overview of RDC6333F Laser Cutting Controller

RDC6333F is one kind of control system, especially for medium power fiber laser cutting. This system is based on RUIDA RDC6333 hardware platform which is widely used and stability verification, working with RUIDA all-digital LFS system, excellent fiber laser cutting performance. The man-machine uses 5.6-inch full-color display. Standalone working method improved the system working stability; standard configured the wireless operating panel, easy for a user using.



Application Area of RDC6333F Laser Cutting Controller

Metal cutting field, sheet-metal processing



Functions of RDC6333F Laser Cutting Controller

1.      Type-Acceleration & deceleration control and self-adapting velocity preprocess effectively ensured the motion smoothness.

2.      Laser control supports PSV and PWM, greatly improved the laser cutting effect.

3.      Support U-disk interface for file copy.

4.      Onboard 256Multra-large-capacity nonvolatile storage.

5.      Upgrade main board program online, convenient for factory maintenance and customization.

6.      The system comes with a time system, for system encryption and installment management.

7.      Support machine reverses backlash compensation.

8.      LFS control and motion control integrated management, easy to operate.



Accessories of RDC6333F Laser Cutting Controller

A connecting line between RDC6333F controller

Fiber laser conversion card

Wireless operation panel

Mainboard Size:235mm*155mm*134mm*184mm*104mm

Power: +24V,>3A;

Environment:-20℃~70℃



Details of RDC6333F Laser Cutting Controller

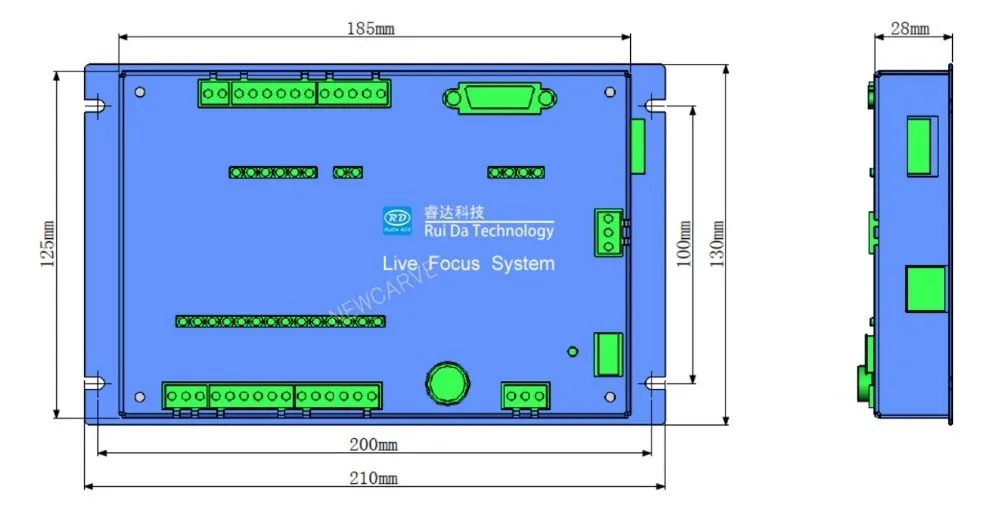

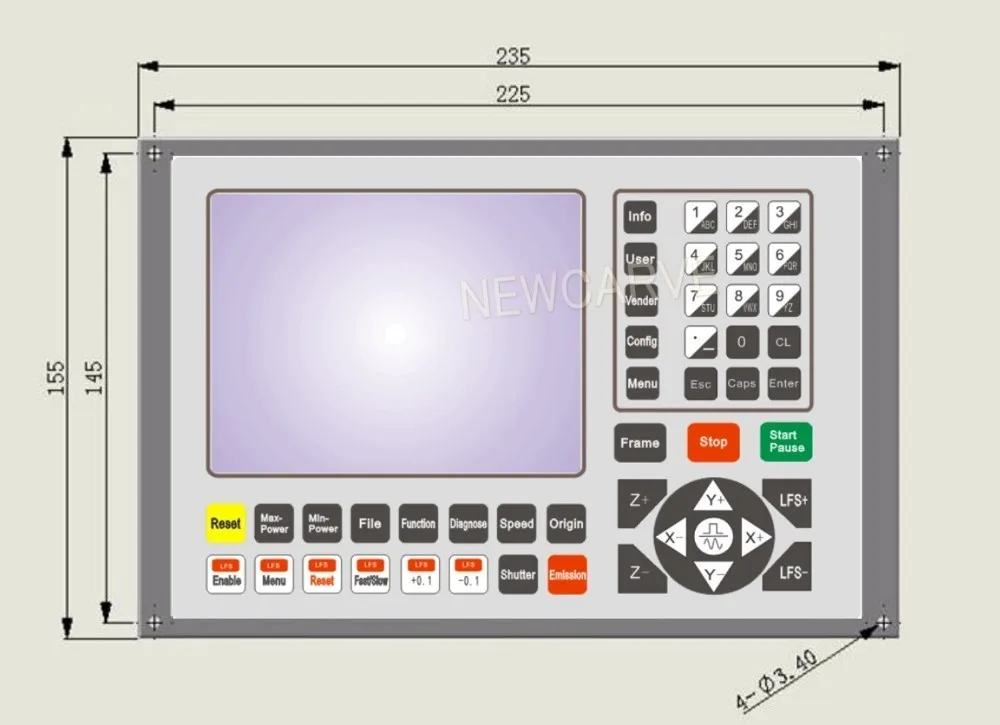

Size of distance controller as shown below:

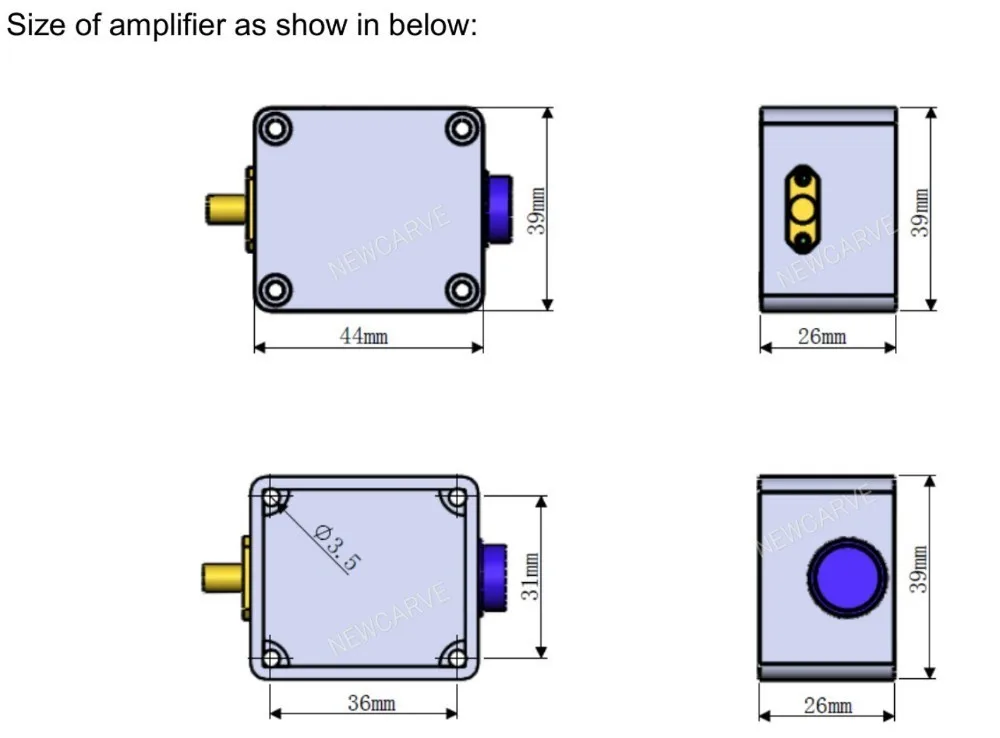

Size of the amplifier as shown below:
