What`s the difference between GL070 and GL070E?
GL070: doesn’t support Ethernet, can replace MT4434T, it`s the same hole size
GL070E: supports Ethernet, can replace MT4434TE, it`s the same hole size
Package included:
1 X HMI
(TIPS: If you need cable for HMI and PLC communication, Please tell us t the brand and model of your PLC,
we will provide you with the best price.)
The software is free(it will be sent by E-mail)
Performance specification |
|
| Display size | 7″ TFT |
| Display area | 154.08(W)x85.92(H) |
| Resolution | 800*480 pixel |
| Display color | 16.77M color |
| Display angle of view | 70/70/50/70(left/right/up/down) |
| Contrast ratio | 500:01:00 |
| Backlight | LED |
| Brightness | 250cd/m2 |
| Backlight life | More than 30000 hours |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 792MHz |
| Storage | 128MB NAND Flash Memory+128MB DDR3 Memory |
| Memory extension | 1 USB Host |
| RTC | Built-in |
| Printer port | USB Host/Serial port |
| Ethernet | 10/100MHz self-adaption |
| Program download | USB Slave/U disk/Ethernet |
| COM port | COM0: RS232/RS485/RS422; COM2: RS232 |
| Electrical specification | |
| Rated power | 3.6W @24VDC |
| Rated voltage | DC10V～DC28V |
| Allowable loss of power | <3ms |
| Insulation resistance | Greater than 50MΩ@ 500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| Shell material | engineering plastic |

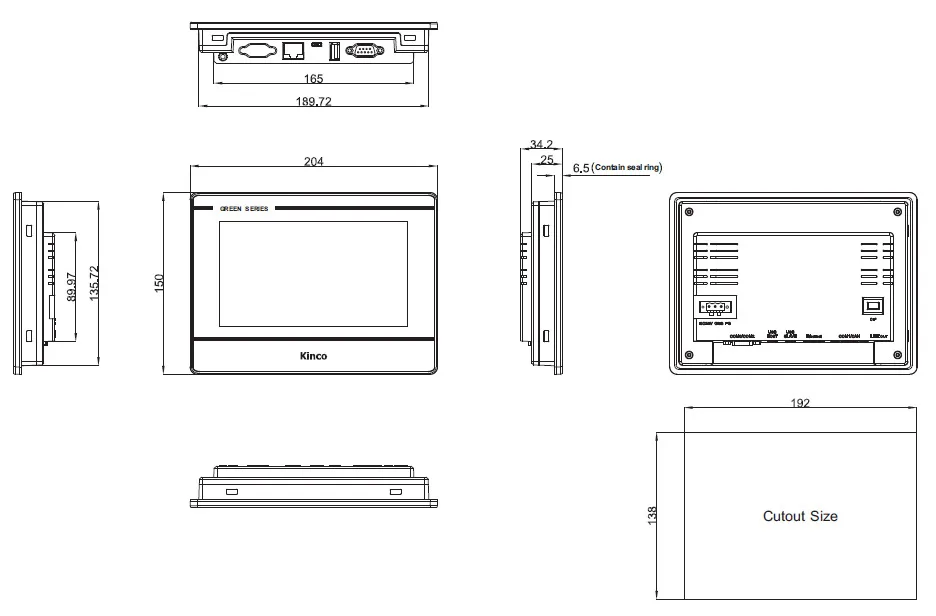

| Dimensions(mm) | 204mm*150mm*34mm |
| Cutout Size(mm) | 192mm*138mm |
| Weight | 0.5Kg |
| Environment specification | |
| The temperature of the working environment | 0～50.℃ |
| The humidity of the working environment | 10～90% non-condensing |
| Storage environment temperature | -20～60℃ |
| Storage environment humidity | 10～90% non-condensing |
| Sine vibration test | 10～500Hz, 30m/s2, X, Y, Z direction/ hour |
| Cooling method | Natural air cooling |
| Certification | |
| Panel protection grade | Conforming to IP65 certification(4208一93) |
| CE authentication | Comply with EN61000-6-4:2007+A1:2011,EN61000-6-2:2005 |
| Software | |
| Configuration software | Kinco DTools V3.2and above version |
