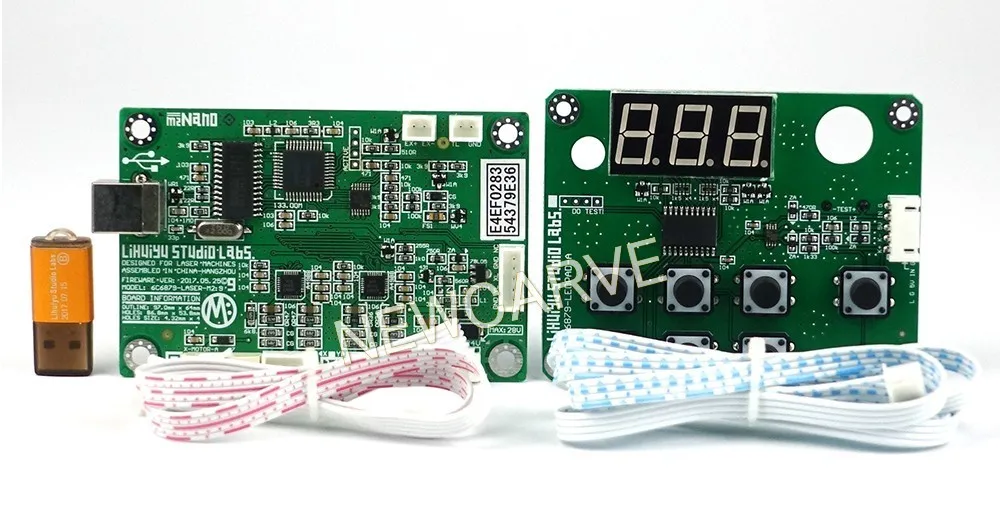

Packing list of LIHUIYU Nano M2 CO2 Laser Controller:
1PCS LIHUIYU M2 Nano main board
1PCS Dongle
1PCS Control Panel
1PCS Cable
Description of PM53C Nc Studio Controller:
1. X-Axis Motor (Contain X Axis Limit, Y Axis Limit)
2. x-axis motor (trolley) engine
3. Y-Axis Motor(Beam Motor)
4. the 5v and 24v’s port
LO: Laser Control Signal Output. High Level-No light Dipping, Low Level(=0.3V)-Laser ON
5V: 5V Switch Power Supply
GND: Ground
24V: 24V Switch Power Supply
5. X Axis Limit, Y Axis Limit
6. The Main Board Code
7. If you use Power Supply, Connect LO to TL.
8. External Synchronous Control Signal Output
