Mounting Dimension OF WEIHONG Nc Studio CONTROL SYSTEM

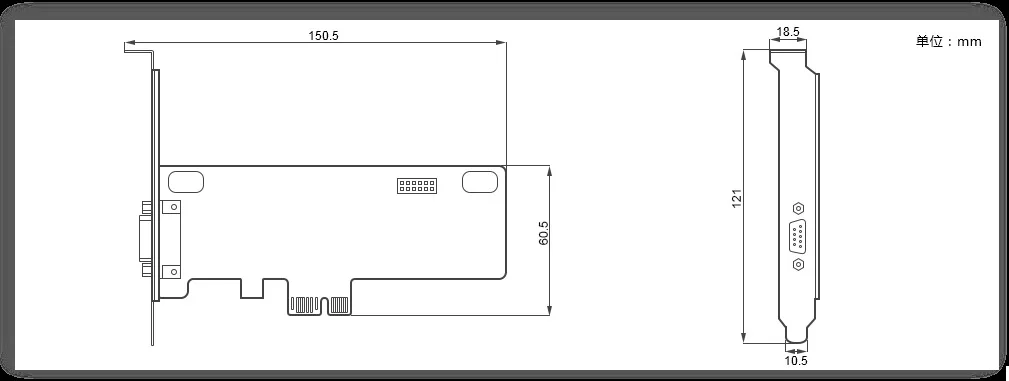

Host computer dimension figure and borehole drawing：
Specification parameters OF WEIHONG Nc Studio CONTROL SYSTEM
CNC Specification
- Number of Axes Supported
3-5axes
Control Signals
- Plus Frequency
1MHz - Control Mode
Position control - Control Signal
Differential signals - Position Signal Type
Plus+Direction

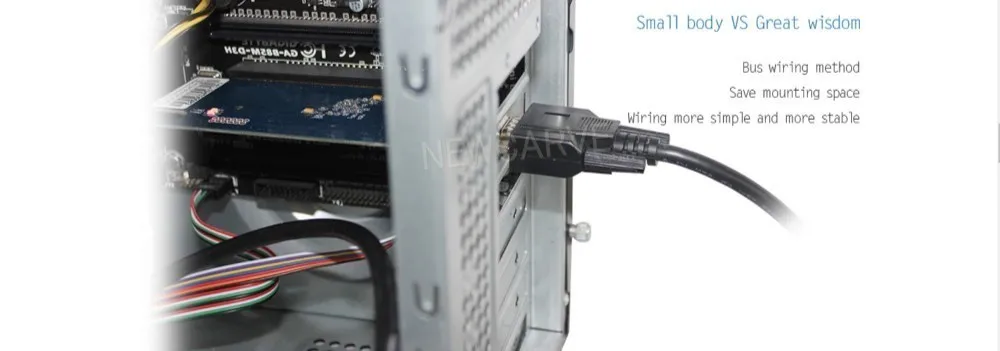

Communication
- External

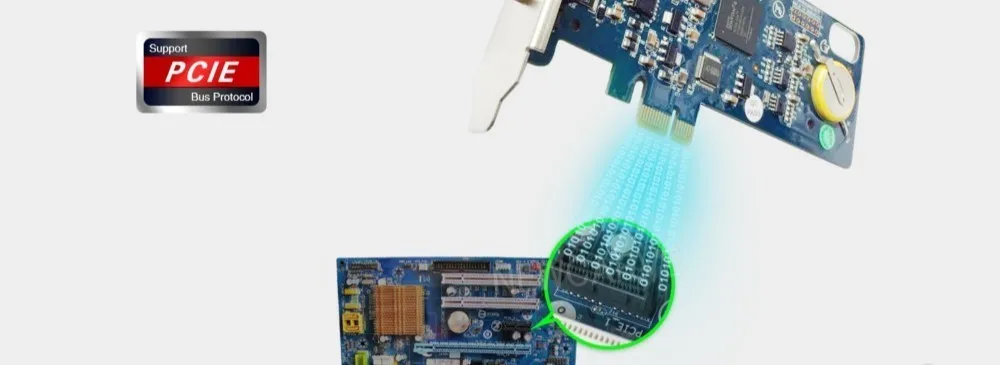

PCI-E - Interactive with Lambda
PHOENIX bus
Spindle
- Analog Voltage Output
0-10V
Tool Measurement
- Tool Measurement Mode
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change
Compensation
- Compensation Type
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation
Toolpath File
- Supported File Format
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt
Operations
- WCS
Supporting WCS G54-G59 and Work Zero saving - Processing Technology
Array, Mirror&rotate, Cycle machining
Convenient Operation
- Handwheel guide, Breakpoint resume, Tool selection
High-speed High-precision Optimization
- Interpolation Algorithms
T-type, S-type and LEP algorithms
Software Language
- Chinese,English
Safety & Reliability
- Software Alarms
Alarms of program error, operation error, over-travel error, PLC error, and IO communication error

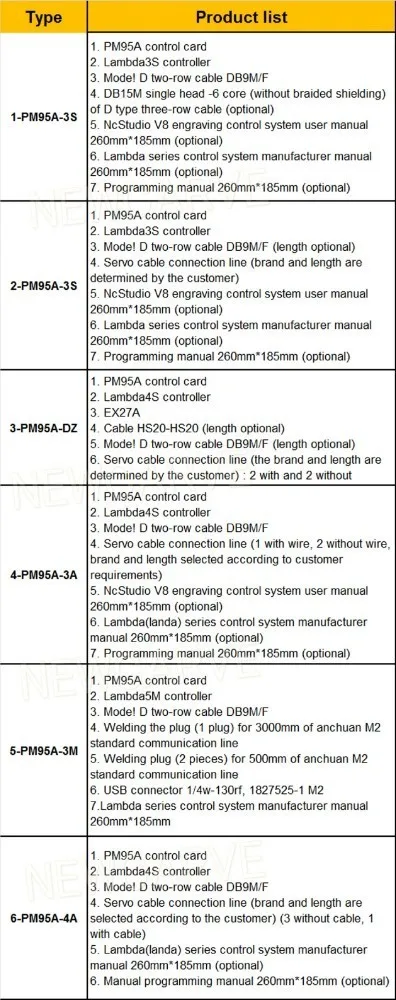

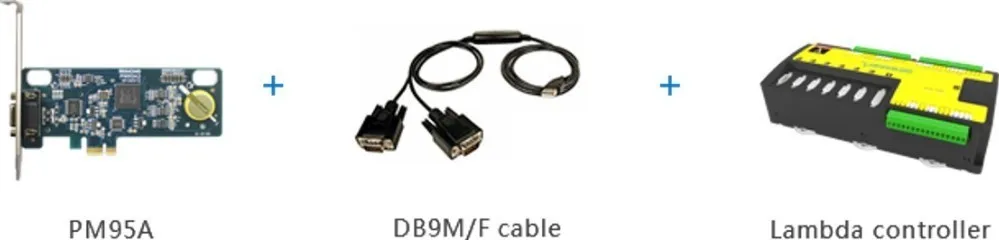

Packing List OF WEIHONG Nc Studio CONTROL SYSTEM
Widely applied in…
