The fundamental type of wireless MPG-AWGP3/5AA
Model: AWGP-3
Model: AWGP-5AA
Application of AWGP-3/5AA 5,6 Axis MPG Controller
AWGP has 2 series:
Basic model: AWGP-3, Only supports 5 axes; axis and rate does not support encoder output
Enhanced model: AWGP-5AA, Support 6 axis; axis and rate support encoding output; support extended 3 key output.
They could be used in German （SIEMENS）、Japanese（MITSUBISHI)、France（FANUC）、Spain（FAGOR）、France NUM、Taiwan LNC、SYNTEC CNC system.

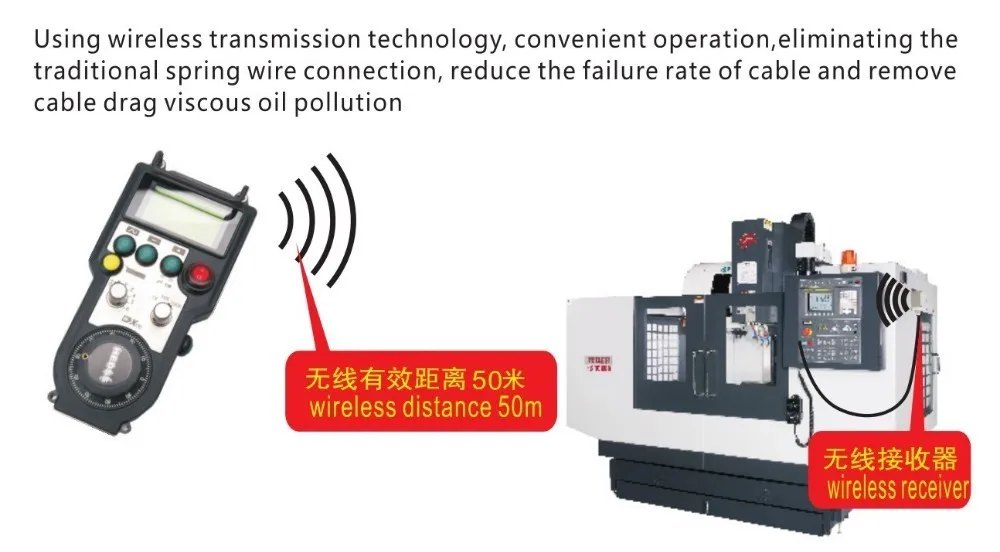

Application circuits of AWGP-3/5AA 5,6 Axis MPG Controller

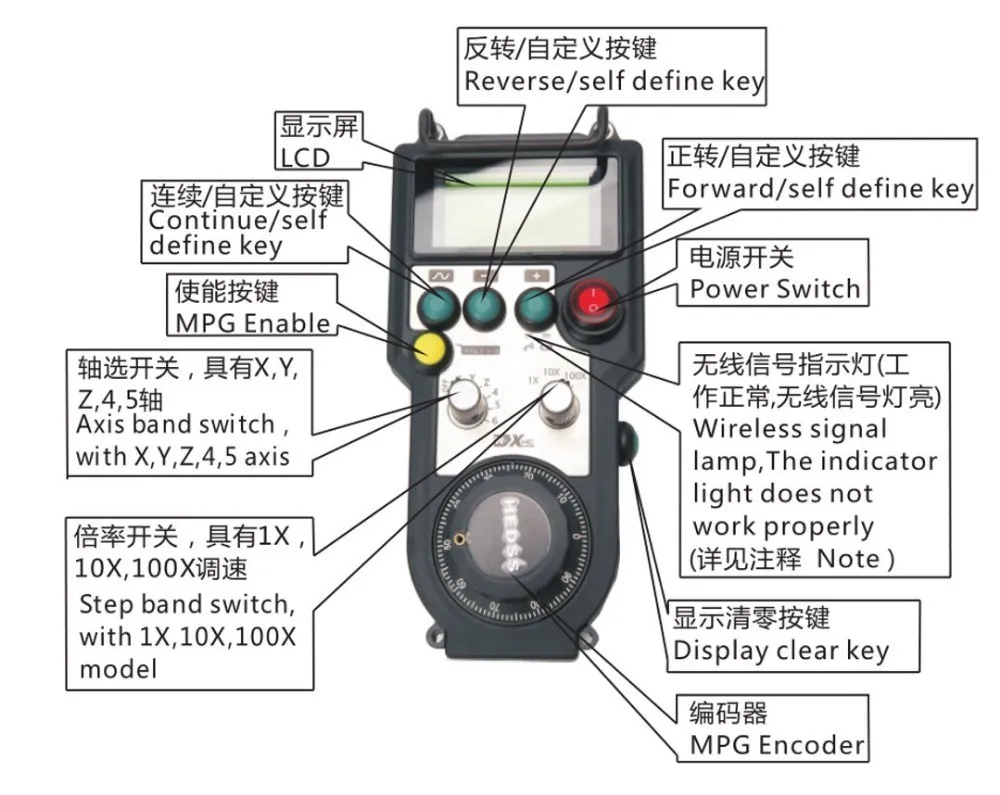

Product Overview of AWGP-3/5AA 5,6 Axis MPG Controller
Basic model AWGP-3:
Enhanced model AWGP-5AA:
The key feature of AWGP-3/5AA 5,6 Axis MPG Controller
Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
The transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
Axis/Step band switch
To choose X/Y/Z/4/5/6 axis or close all axis by axis switch, to choose jog step by step switch.
Enable key
The enable key is used to enable the mpg for safety.
LCD display
The LCD display data with background light. Display the current work state of the CNC system.
General Characteristics of AWGP-3/5AA 5,6 Axis MPG Controller
| Parameter | Description |
| Frequency bands | ISM,433MHZ |
| Supply voltage | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Function Key | 3 Keys |
| RF TX power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 5/6 axis |
| LCD | 128*68 Dot LCD with background |
| Material | ABS、PC、aluminium |
Attachments of AWGP-3/5AA 5,6 Axis MPG Controller
| AWGP Wireless MPG | 1piece |
| Handle | 1 piece |

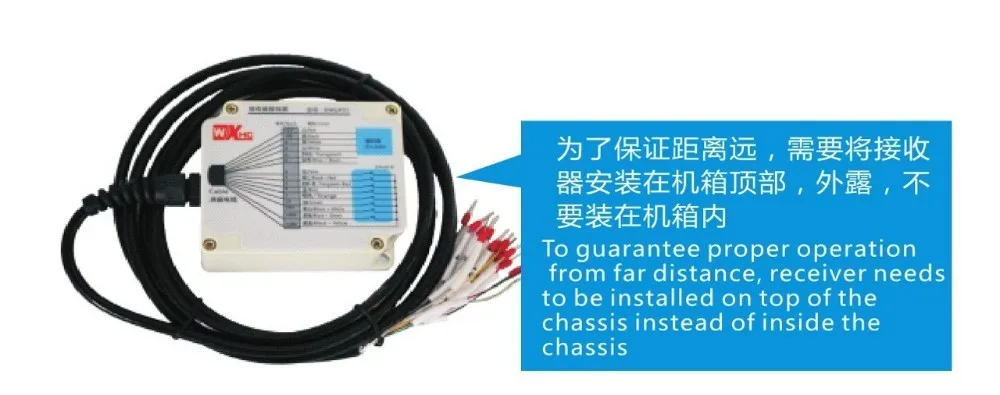

| Wireless Receiver | 1 piece |
| AWGP Manual | 1 book |
| Package box size | 235*225*85mm |
| Weight | 0.9kg |
