Specification of DT02 Setting Gauge Height Controller：
- DT02 CNC tool setting height gauge is universal, can work with many CNC systems, such as Ncstudio, Mach2 Mach3, NC Studio, HNC, Siemens, Mitsubishi, Fanuc, lNC, SYNTEC, etc.

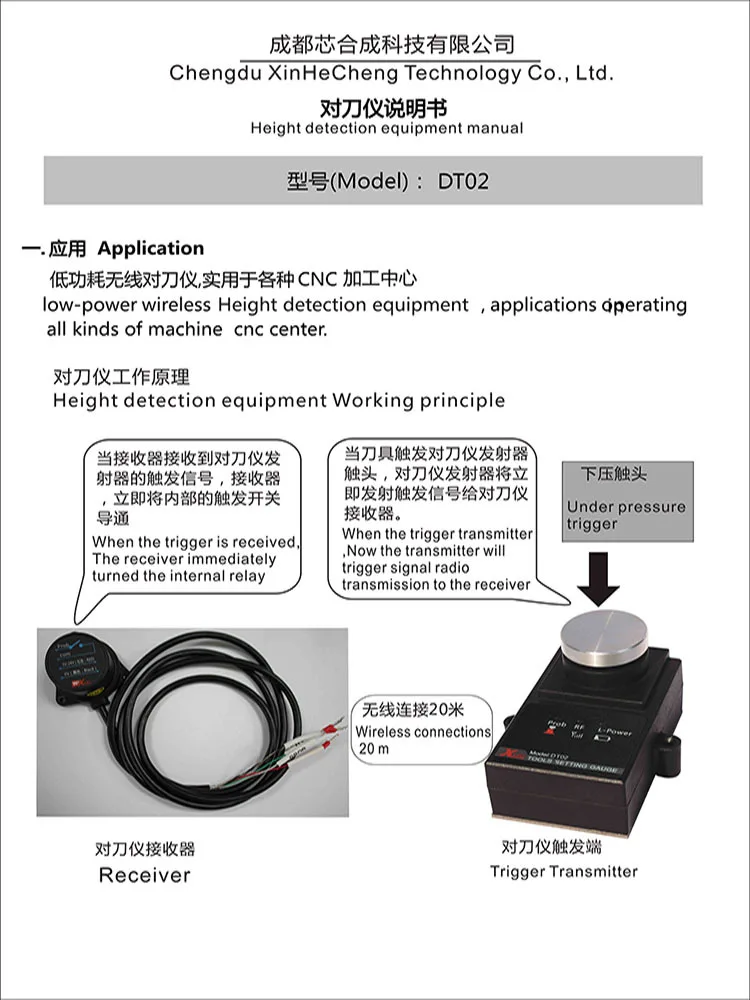

- Low-power wireless tool setting gauge, applications operating in all kinds of machine CNC center.
- K2 is the electric relay output normal open switch, which will be closed when the probe signal is triggered.
- Power on the receiver. please make sure that the input power is 5v-36v DC. The work led flash to indicate power on ok.
- Install the two AAA batteries to the terminal device. Open the battery door-install the 2 AAA. (Attention to The battery positive and negative direction )-close the battery door
Electrical specifications of DT02 Setting Gauge Height Controller
Receiver
- Work voltage:5v~36 DC
- current consumption: type 20ma
- Wireless distance:20 meter
- The relay normally open contacts output: support maximum 250V/50ma load.
- Tool setting gauge
- Work voltage:2 AAA
- batteries,2.4V~3.6V DC
- Current consumption: type 20uA.To work continuously for more than 6 months
- Wireless distance:20 meter Probe precision: 0.01mm
Low power warning: please exchange the batteries when low power led light.
