CNC Mach4 motion control card
Model Number: MKX-M4
Size：184*127*30mm

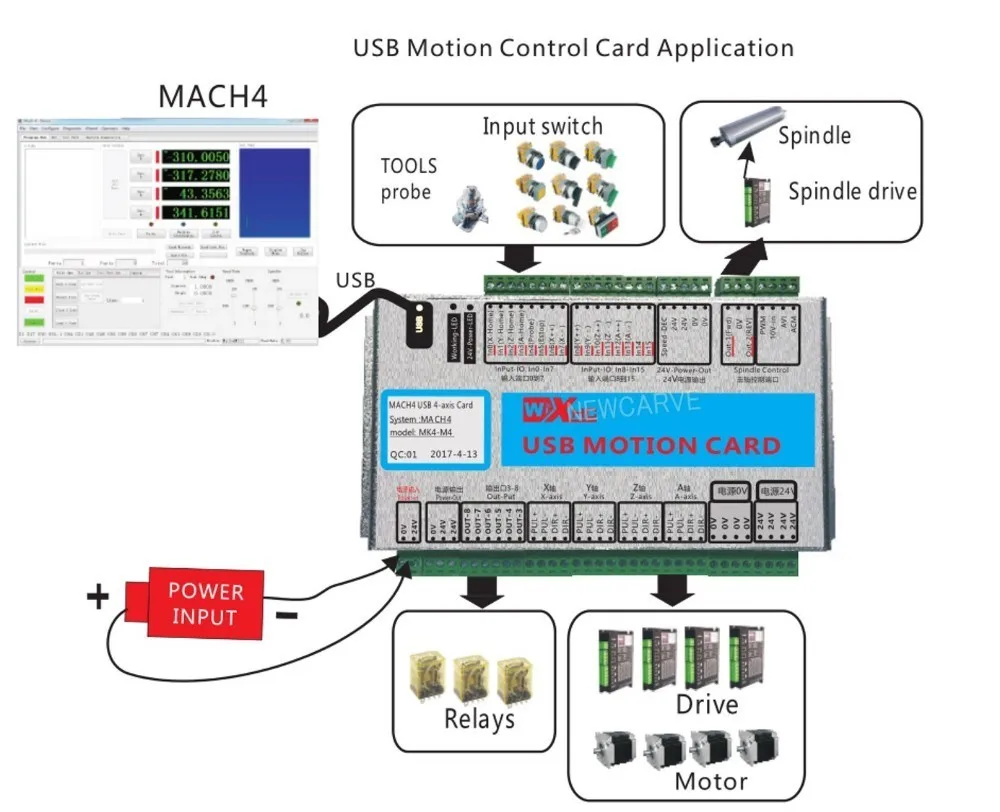

Application of MKV-M4 Mach4 motion control card

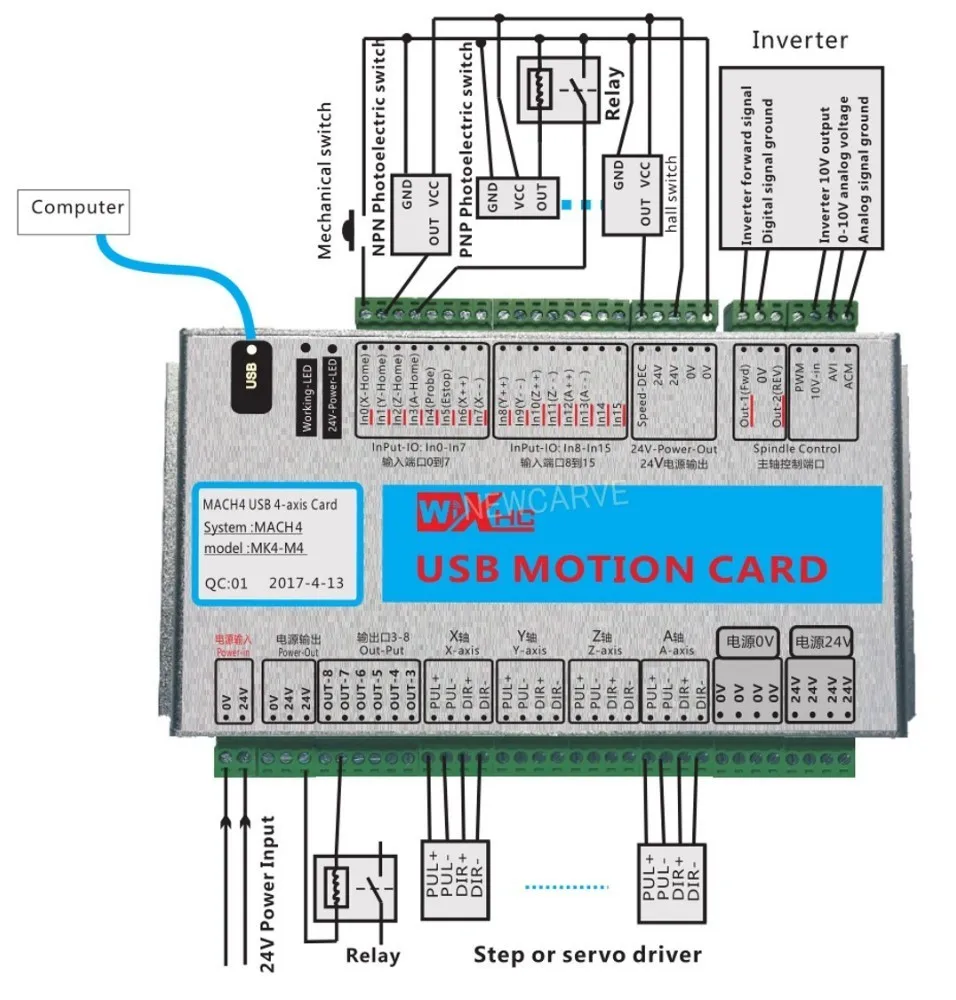

Application circuits of MKV-M4 Mach4 motion control card
Product Overview of MKV-M4 Mach4 motion control card
The key feature of MKV-M4 Mach4 motion control card
1.Supporting Mach4 Hobby version
2.Support spindle speed feedback
3. Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.
4. Supports Up 6-axis, support differential output Maximum step-pulse frequency is 2000KHz
5. Status indicator LED can be useful to show the USB connection and working status by flashing.
6.16 general-purpose input
7.has speed function, the spindle actual speed Mach4 interface in the real-time display
8.all IO-port isolation, interference, stable performance
General Characteristics of MKV-M4 Mach4 motion control card
| Parameter | Description | |
| Axis drive control | Isolated oc output | Voltage:5V,maximum load:20A |
| type | STEP/DIR | |
| Maximum Step frequency | 2000KHZ | |
| Number of the support axis | MK3-M4：3 axis
MK4-M4：4 axis MK6-M4：6 axis |
|
| Spindle control | Analog output voltage | 0-10V |
| Digital PWM output | 5V,1KHZ,fill factor:%1-100% | |
| STEP/DIR | Min frequncy：15Hz
Max frequncy：4KHz |
|
| 8 digital output | Maximum load of the output line | 50mA |
| The maximum voltage on the outline | 25V | |
| 16 digital input | Maximum load of the input line | 5mA |
| maximum voltage on input line | 25V | |
| PC connection | Standard USB2.0 |
Attachments of MKV-M4 Mach4 motion control card
| MKX-M4 motion card | 1 piece |
| Use wire | 1 piece |
| Driver disk | 1 disk |
| MACH4-USB troubleshooting | 1 book |
| MACH4 config and driver installation | 1 book |
| MKX –M4 user Manual | 1 book |
| Package box size | 275*144*42mm |
| weight | 0.7KG |
